| ■ Specifcation |
SNG100-SNG1500
| ■ Features |
Good flexibility, permeability, fitration, separation and easy for construction.
| ■ Usage |
Short fber needle punched geotextilea used in the area of highway,railway,dam,land fencing for filtration, separation drainage and protection.
| ■ Size of Package |
Width 2-6m, length 50-100m(or at request)
| ■ Products Technical Parameter |
| NO. | Value/Item | Specification | Note | ||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
| 1 | Weight Variation % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| 3 | Width Variation % | -0.5 | |||||||||||
| 4 | Breaking Strength KN≥ | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | MD and TD |
| 5 | Elongation at Break % | 25-100 | |||||||||||
| 6 | CBR Mullen Burst Strength KN≥ | 0.2 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| 7 | Sieve Size O90 mm | 0.07-0.2 | |||||||||||
| 8 | Vertical Permeability Coefficient cm/s | K×（10-1～10-3） | K=1.0-9.9 | ||||||||||
| 9 | Tear Strength KN≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | MD and TD |

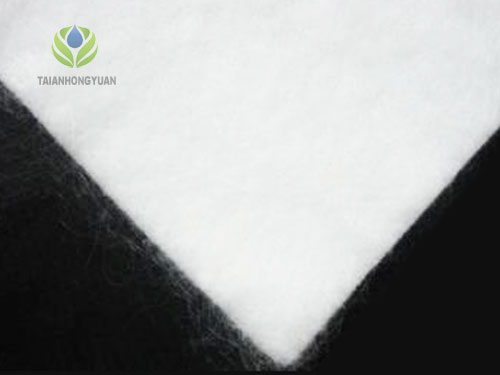

Short fber needle punched geotextilea
Short fber needle punched geotextilea 2020-4-7 This article is read 7576 Times
